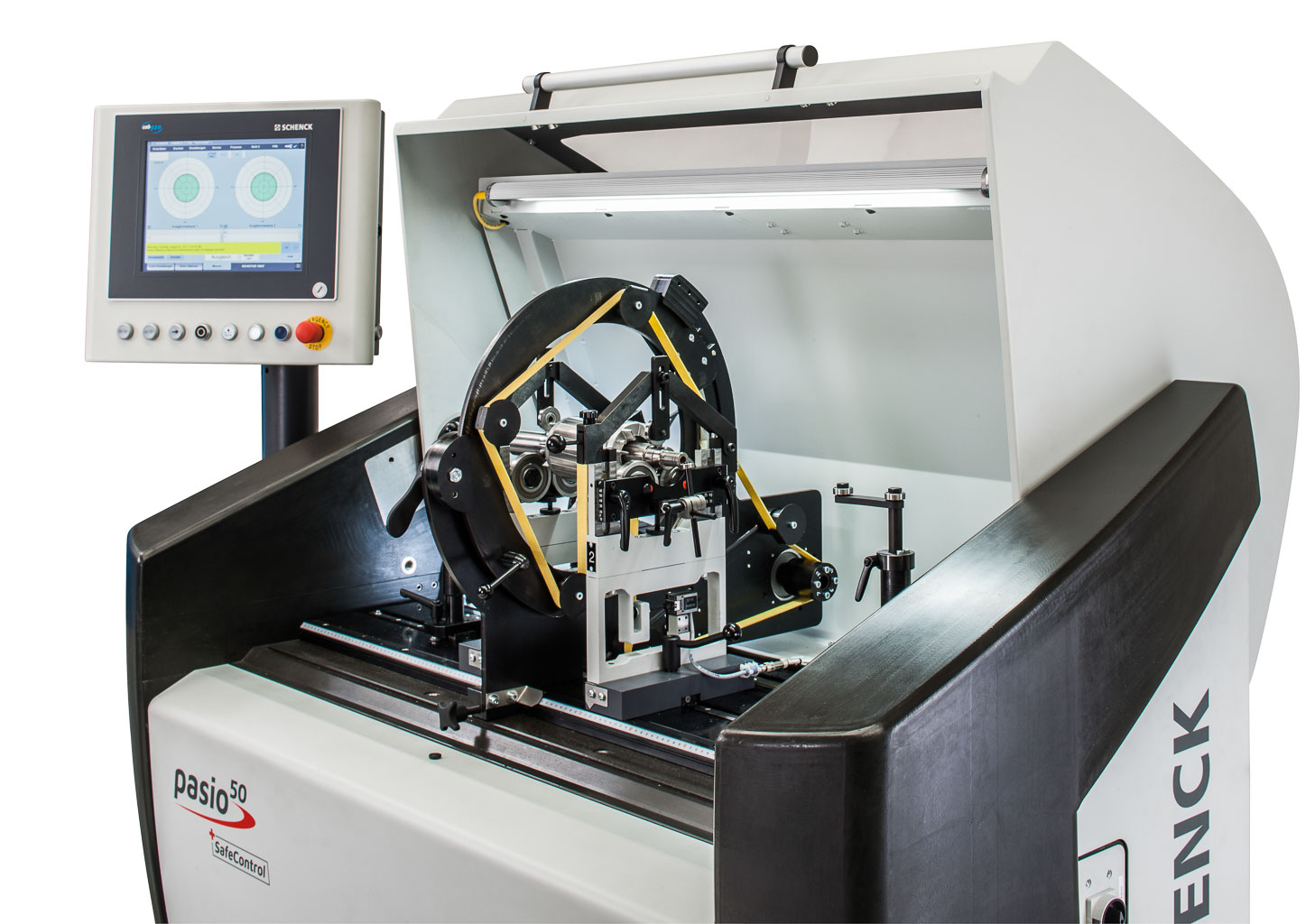

| Data at a glance | Pasio 50 | ||
| Measuring device | CAB 820 | ||

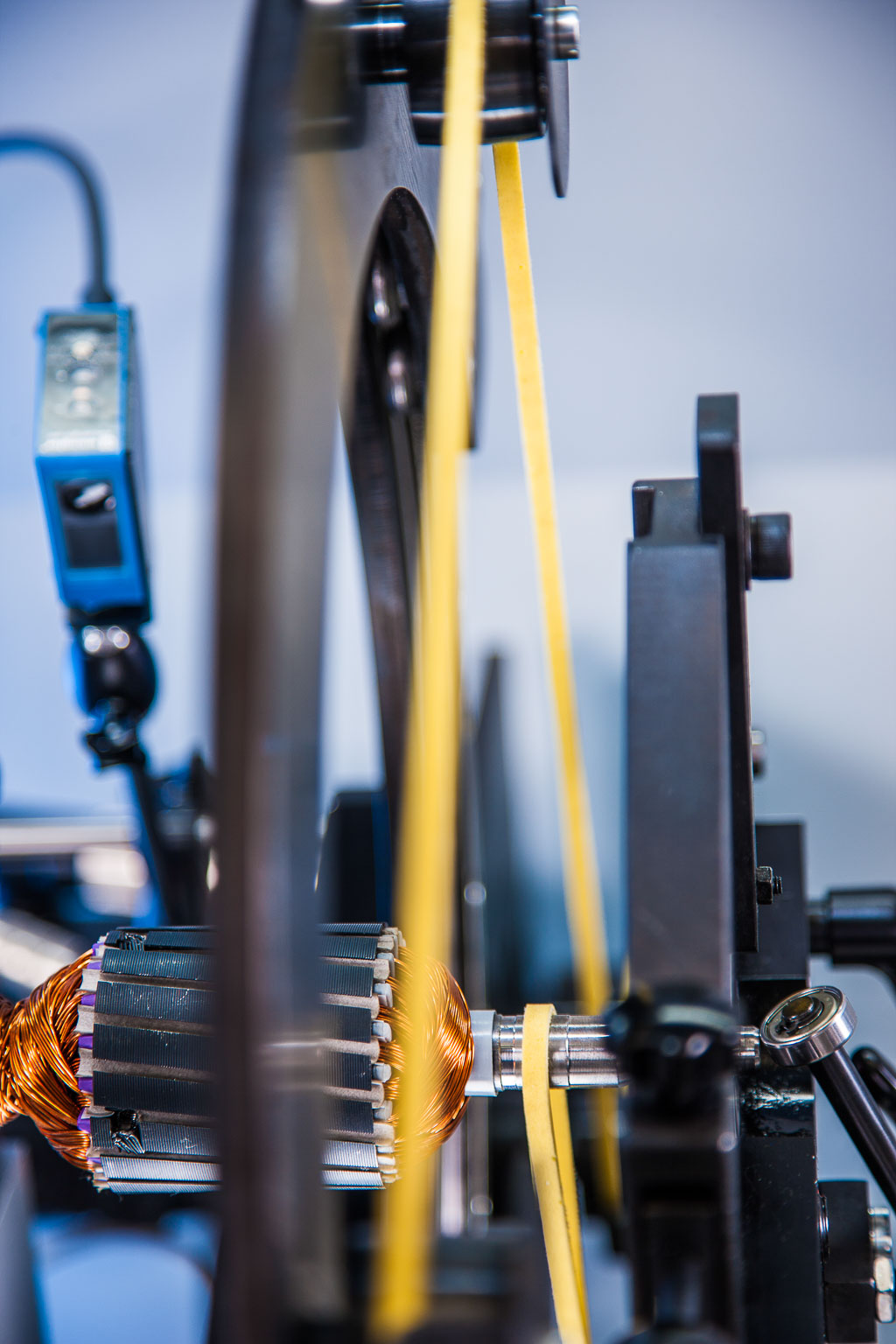

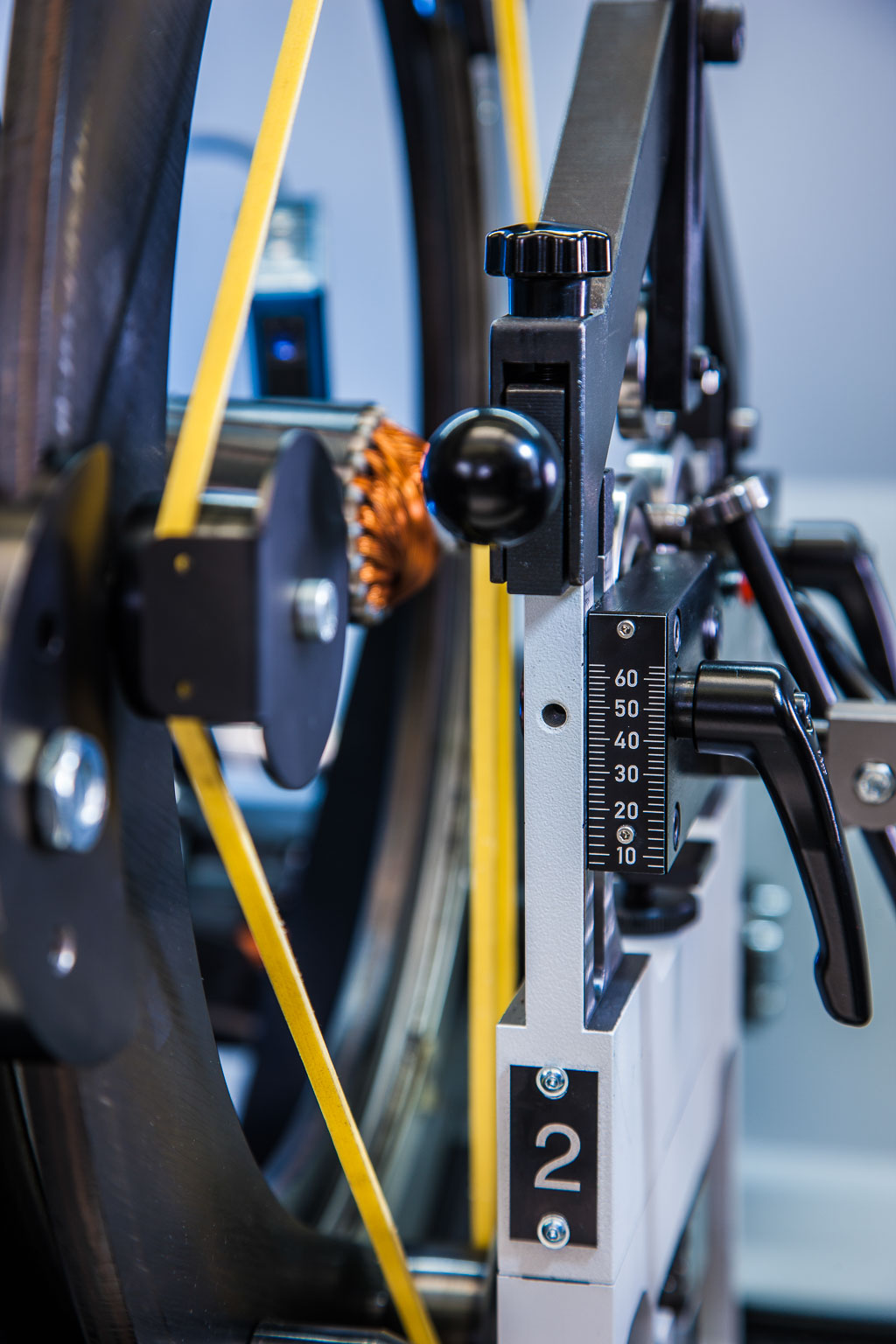

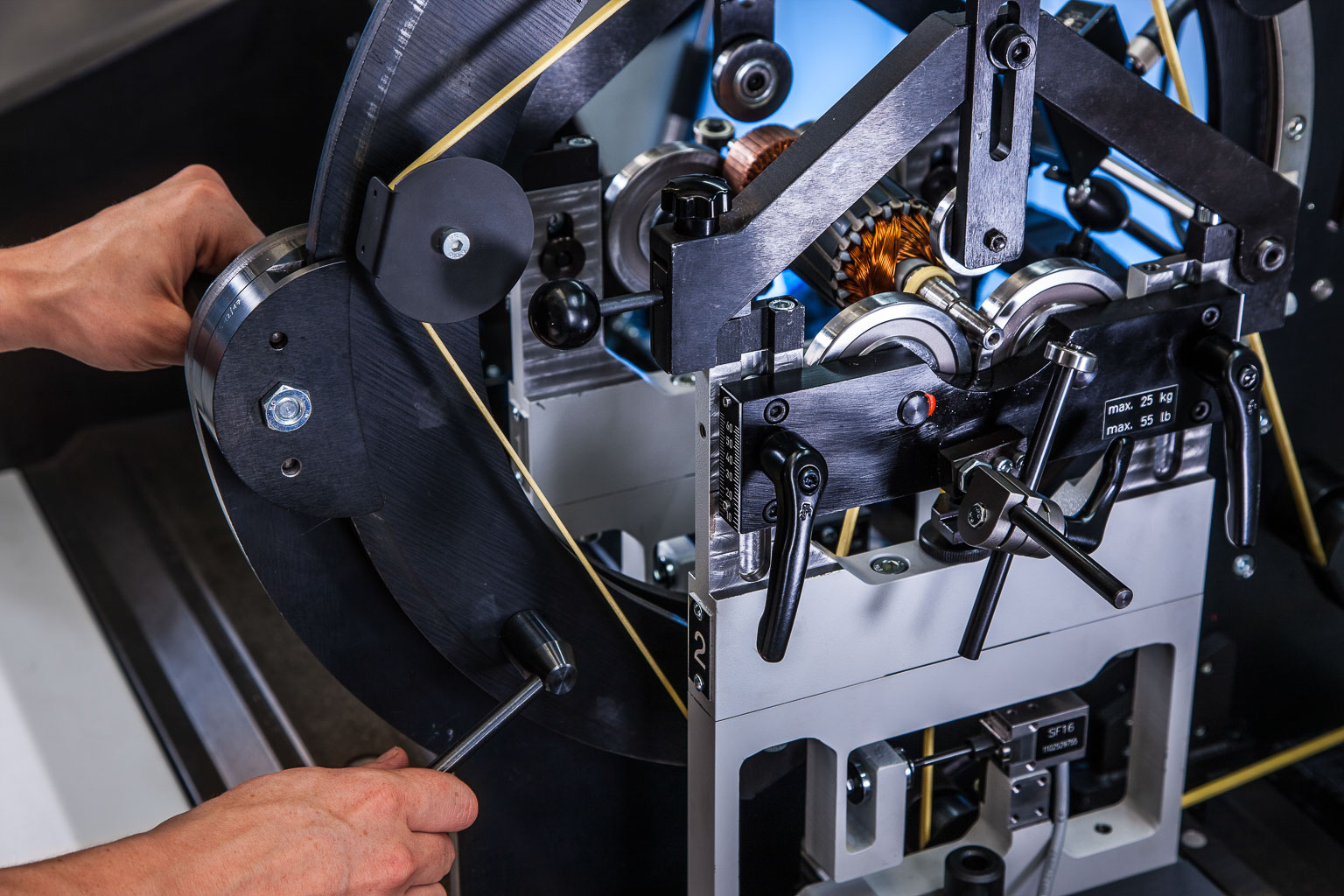

| Rotor bearing arrangement | Carrier roller bearing arrangement | ||
| Drive type | Overslung belt drive BK | ||
| Rotor | |||
| Weight, max. | [kg] | 50 | |
| Diameter, max. | [mm] | 600 | |

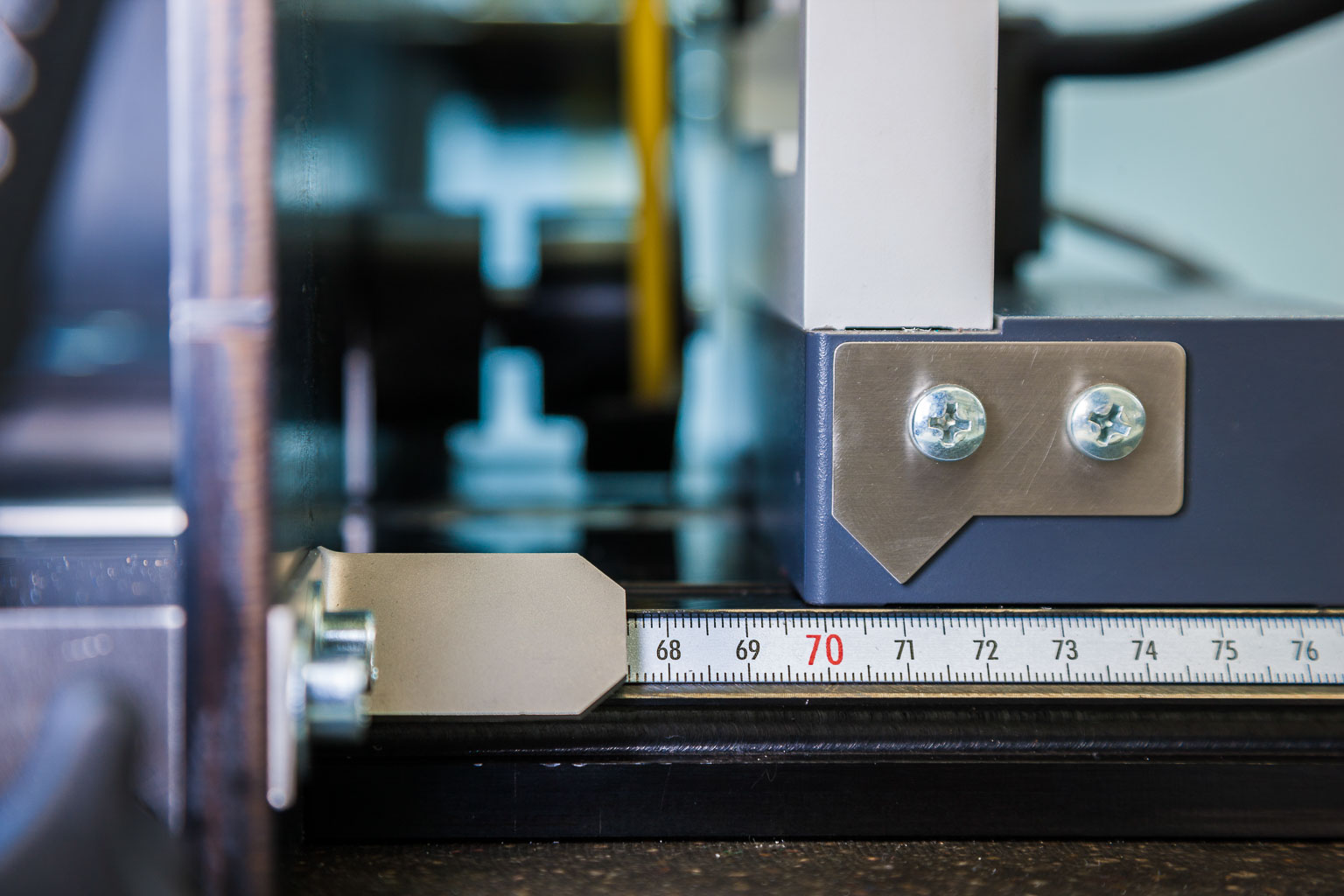

| Bearing clearance | [mm] | 40 - 1100 | |
| Bearing pin diameter 2) | [mm] | 9 - 63 | |
| Machine | |||

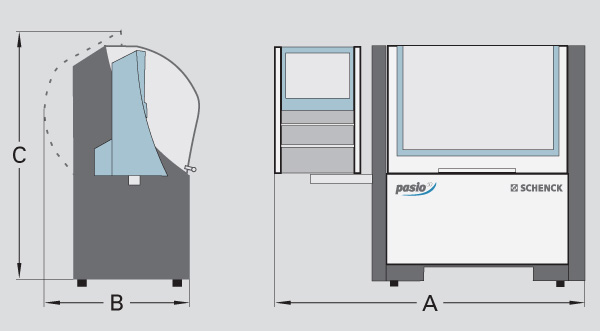

| Width A | [mm] | 2200 | |
| Depth B | [mm] | 1010 | |
| Height C | [mm] | 1765 | |
| Total weight | [kg] | 1100 | |
| Balancing speed | [rpm] | 180 - 2700 (variable) | |
| KER 4) | [gmm] | 1.0 | |
| Air pressure | [kPa] | - | |
| Power supply | 400 V ± 10%, 3 Ph, 50 / 60 Hz | ||
| Drive power | [KW] | 1.1 | |
| Sound Pressure Level (with class C protection) | [LpA [dB(A)]] | < 60 | |
| Order no. | R0060300.02 | ||
| Order no. | R0060301.01 | ||
| Carrier roller bearing for pin diameter | on request | ||
| Mass correction system | on request | ||
| 4) Smallest achievable residual unbalance per balancing level |
