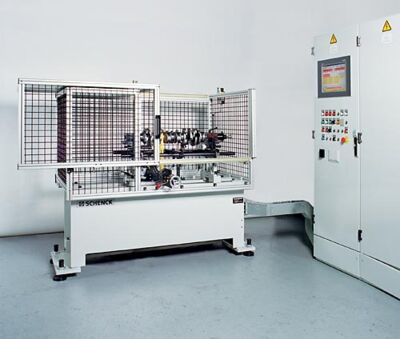

Checking Machine for Crankshafts 350 MBRK, 550 MBRK, 650 MBRK

Quality control of crankshaft castings or forging and finish machined crankshafts
Manual loading and unloading
Expandable with a correction unit

Design

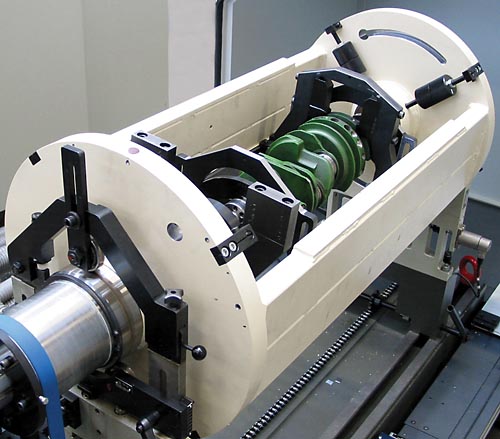

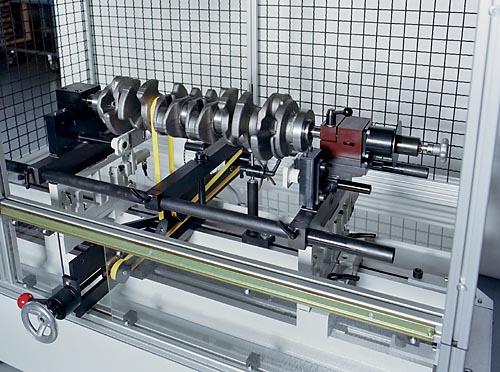

Machines with horizontal rotor axis and rugged sub-critical balancing unit. Belt-drive for the crankshaft and end-drive for the cage. Support of the crankshaft according to requirements and task, between spindle cones or in a cage.

Design

Technical data

Technical data at a glance		352 MBRK	354 MBRK	552MBRK	554MBRK	555MBRK	652 MBRK	654 MBRK	655 MBRK
Measuring unit		CAB 950	CAB 950	CAB 950	CAB 950	CAB 950	CAB 950	CAB 950	CAB 950
Passenger-vehicle crankshafts		•	•
Light commercial-vehicle crankshafts		•	•	•	•	•
Heavy commercial-vehicle crankshafts				•	•	•	•	•	•
Belt drive BU		•		•			•
Roller bearings ¹⁾
...Support between spindle cones ²⁾		•		•			•
...Support in a cage between spindle cones ³⁾			•		•	•		•	•
Crankshafts
Weight	[kg]	7 - 75	7 - 30	20 - 150	20 - 190	20 - 190	50 - 300	50 - 250	50 - 250
Total length	[mm]	max. 1000	310 - 610	max.1300	430 - 790	630 - 990	max. 2000	630 - 1110	880 - 1360
Distance between spindle cones	[mm]	-	335 - 590	-	390 - 750	590 - 970	-	580 - 1060	830 - 1340
Outside diameter	[mm]	-	max. 190	-	max. 260	-	-	-	max. 330
Main journal diameter, range 1	[mm]	40 - 70	45 - 80	50 - 70	60 - 110	60 - 110	80 - 100	80 - 130	80 - 130
Main journal diameter, range 2	[mm]	70 - 90	-	70 - 115	-	-	100 - 150	-	-
Machine

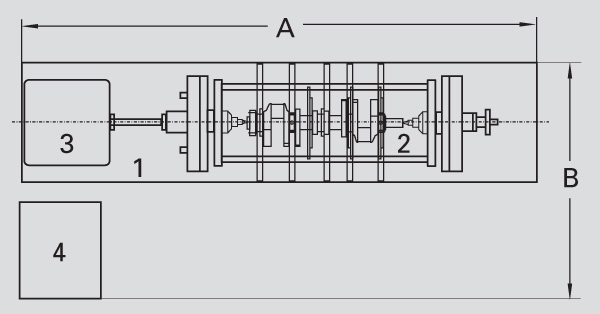

Width A ⁴⁾	[mm]	3600	3600	3800	3800	3800	4100	4100	4100
Depth B ⁴⁾	[mm]	1600	1600	1600	1600	1600	1600	1600	1600
Height C ⁴⁾	[mm]	2200	2200	2200	2200	2200	2200	2200	2200
Drive power	[kW]	0,65	0,85	1,3	1,75	1,75	2,2	2,2	2,2
Balancing speed	[min -1]	400 - 900	550	400 - 800	490	490	390 - 740	400	400
Measurement uncertainty	[gmm]	30	30	40 - 200	40 - 200	40 - 200	40 - 200	40 - 200	40 - 200
Cage dimensions
Clearance between bars	[mm]	-	224	-	290	290	-	360	360
Spindle sleeve clamping distance	[mm]	-	45	-	50	50	-	60	60
Length diff. Between cones in the cage	[mm]	-	-	-	80	80	-	100	100
Distance between cones in the cage ⁶⁾
2 spindle cones, long	[mm]	-	380 - 500	-	440 - 640	640 - 840	-	640 - 920	890 - 1170
1/1 spindle cone, long/short	[mm]	-	440 - 560	-	520 - 720	720 - 920	-	740 - 1020	990 - 1270
2 spindle cones, short	[mm]	-	500 - 620	-	600 - 800	800 - 1000	-	840 - 1120	1090 - 1370

Basic machine	Order No.	R0250200.01	R0250300.01	R0250500.01	R0250600.01	R0250700.01	R0250900.01	R0251000.01	R0251100.01
Options
Roller bearings	Order No.	R0250202.01	-	R0250502.01	-	-	R0250902.01	-	-
1 x spindle cone, short	Order No.	-	R0250303.01	-	R0250603.01	R0250703.01	-	R0251003.01	R0251103.01
1 x spindle cone, long	Order No.	-	R0250304.01	-	R0250604.01	R0250704.01	-	R0251004.01	R0251104.01

1) Machines with roller bearings 351/551/651 MBRK for machined crankshafts on request
2) Centered crankshaft castings or forgings, symmetrical (e.g. straight-four cylinder); support between spindle cones
3) Centered crankshaft castings or forgings, symmetrical or asymmetrical (e.g. V-shafts). Support between spindle cones in cage, on request with counter moment
4) Data non-binding, depending on the respective equipment
5) Acc. to DIN 1319, 95% probability, rotor dependent
6) Optional spindle cones, see options
